BG Thermal 1600W Hot Air Plastic Overlap Welding Kit
The 1600W hot air plastic overlap seam welding kit by BG Thermal is engineered for continuous overlap seam welding on geomembranes, PVC coated fabrics, tarpaulins, and waterproofing membranes. Powered by a high-torque motor rated for an 800–1000 hour continuous lifespan, this 1600W straight-barrel hot air welder kit delivers stepless temperature adjustment from 20°C to 700°C for demanding field operations.
HIGHLIGHTS
Stepless Temperature Control: Precision thermal adjustment from 20°C to 700°C for versatile overlap seam sealing across various thermoplastic materials.
800–1000 Hour Motor Lifespan: Heavy-duty industrial motor engineered to strict long-life reliability standards for continuous field operation.
Dynamic Overheat Protection: Thermal safeguard prevents overheating and protects the high-temperature ceramic heating core.
Complete Overlap Seaming Setup: Equipped with 20mm and 40mm wide slot flat nozzles plus a silicone pressure roller for uniform seam strength.
Impact-Resistant Construction: Rugged straight-barrel housing designed to withstand harsh job-site conditions and accidental drops.

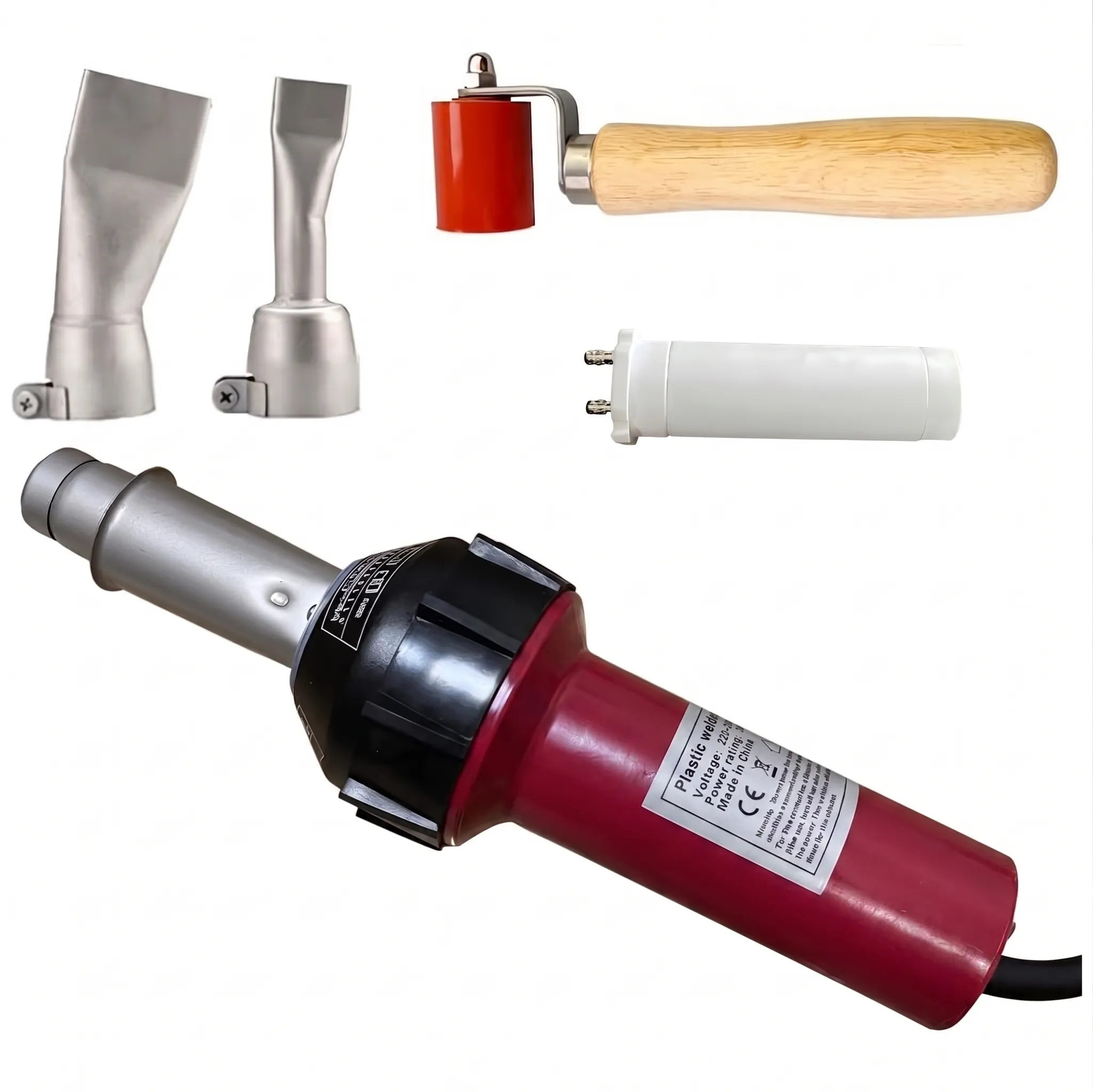

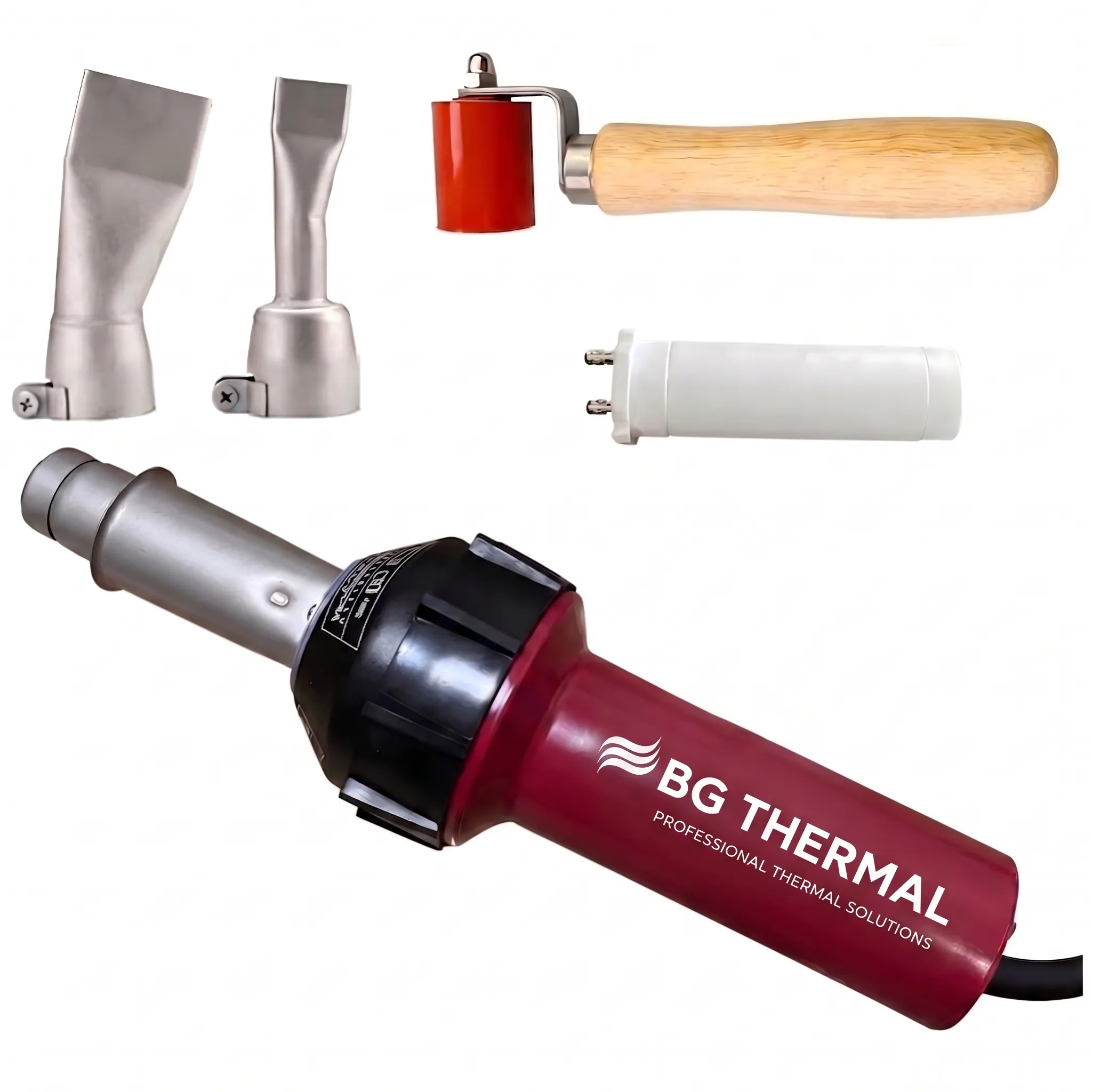

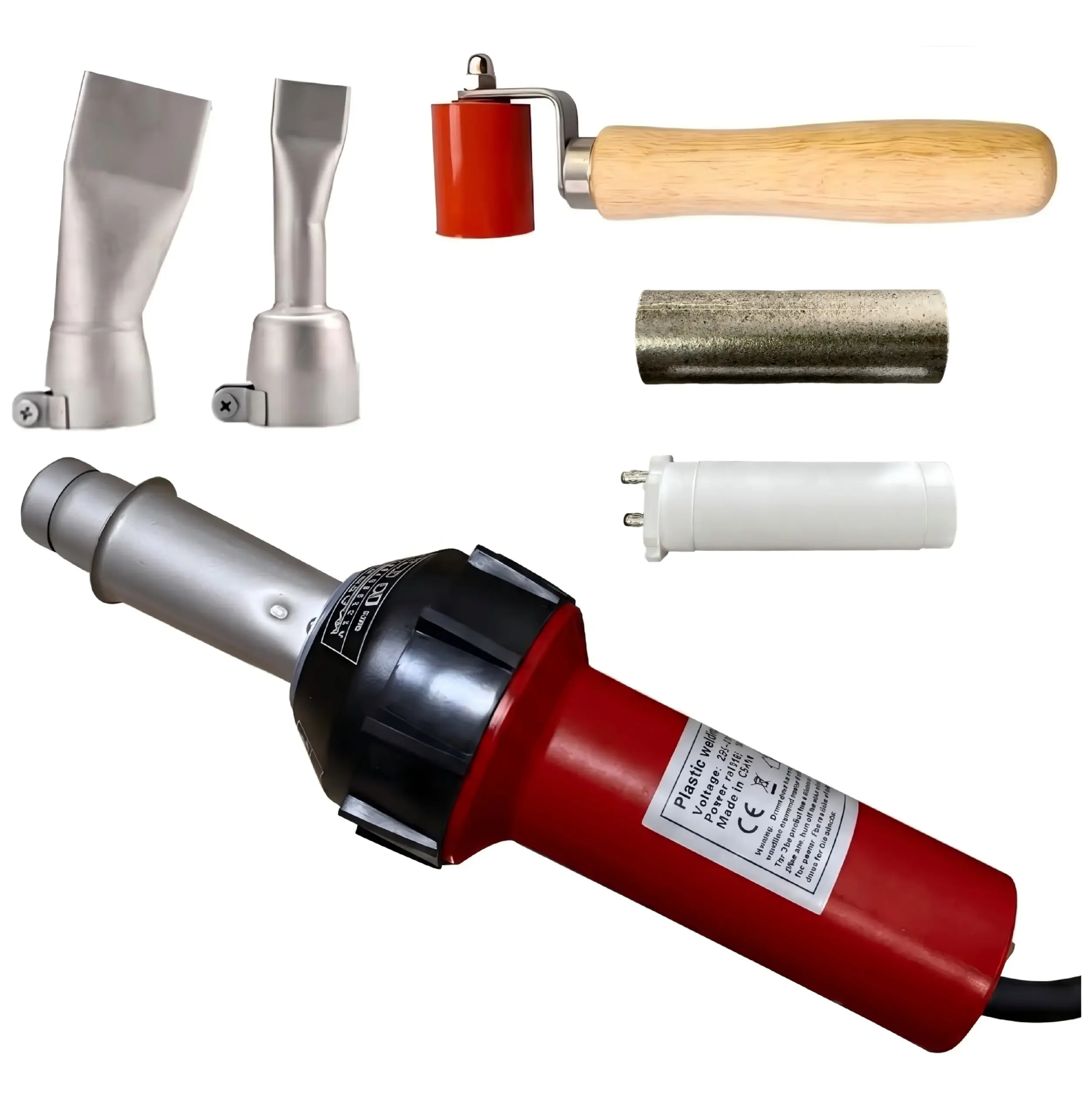

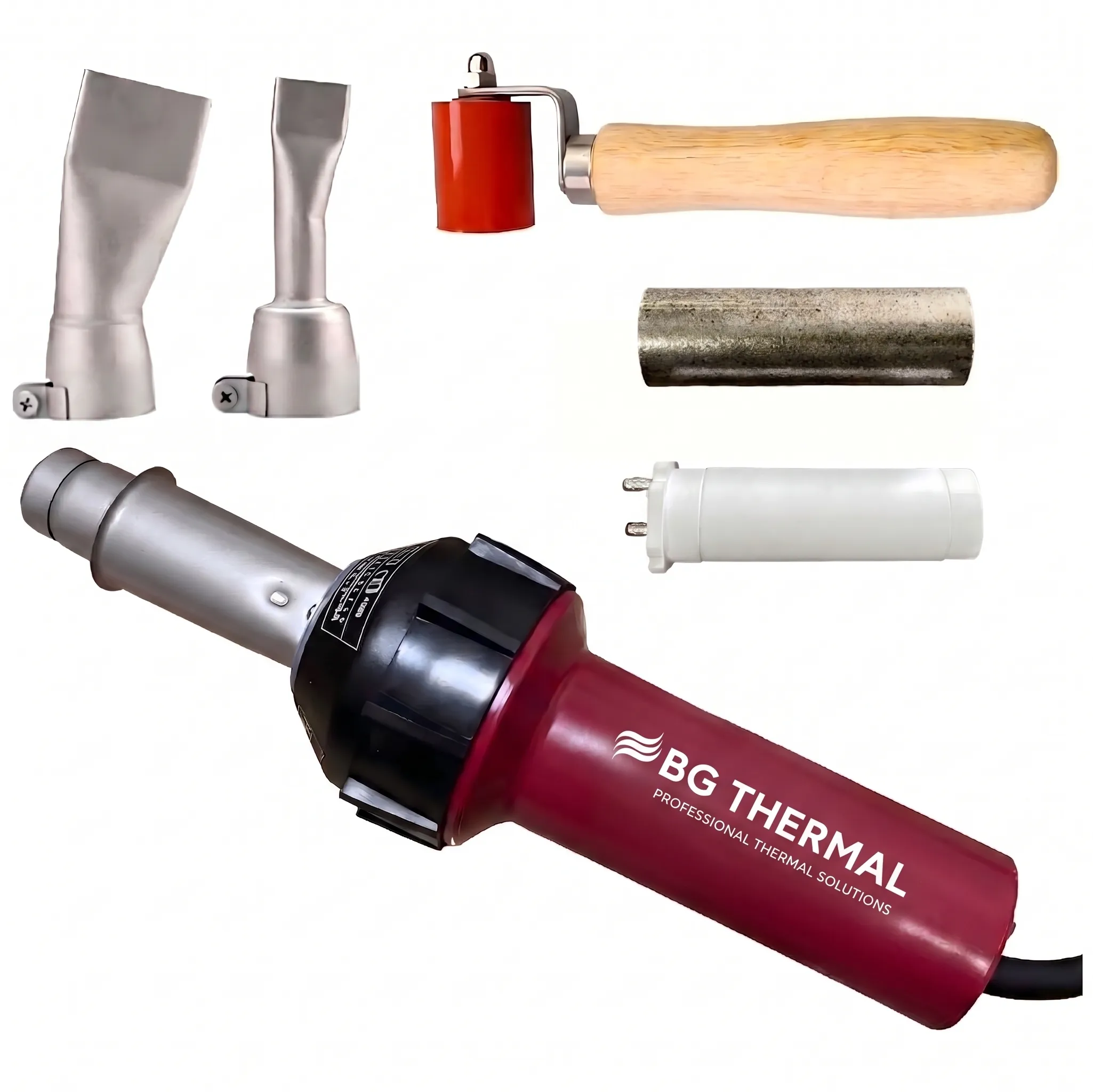

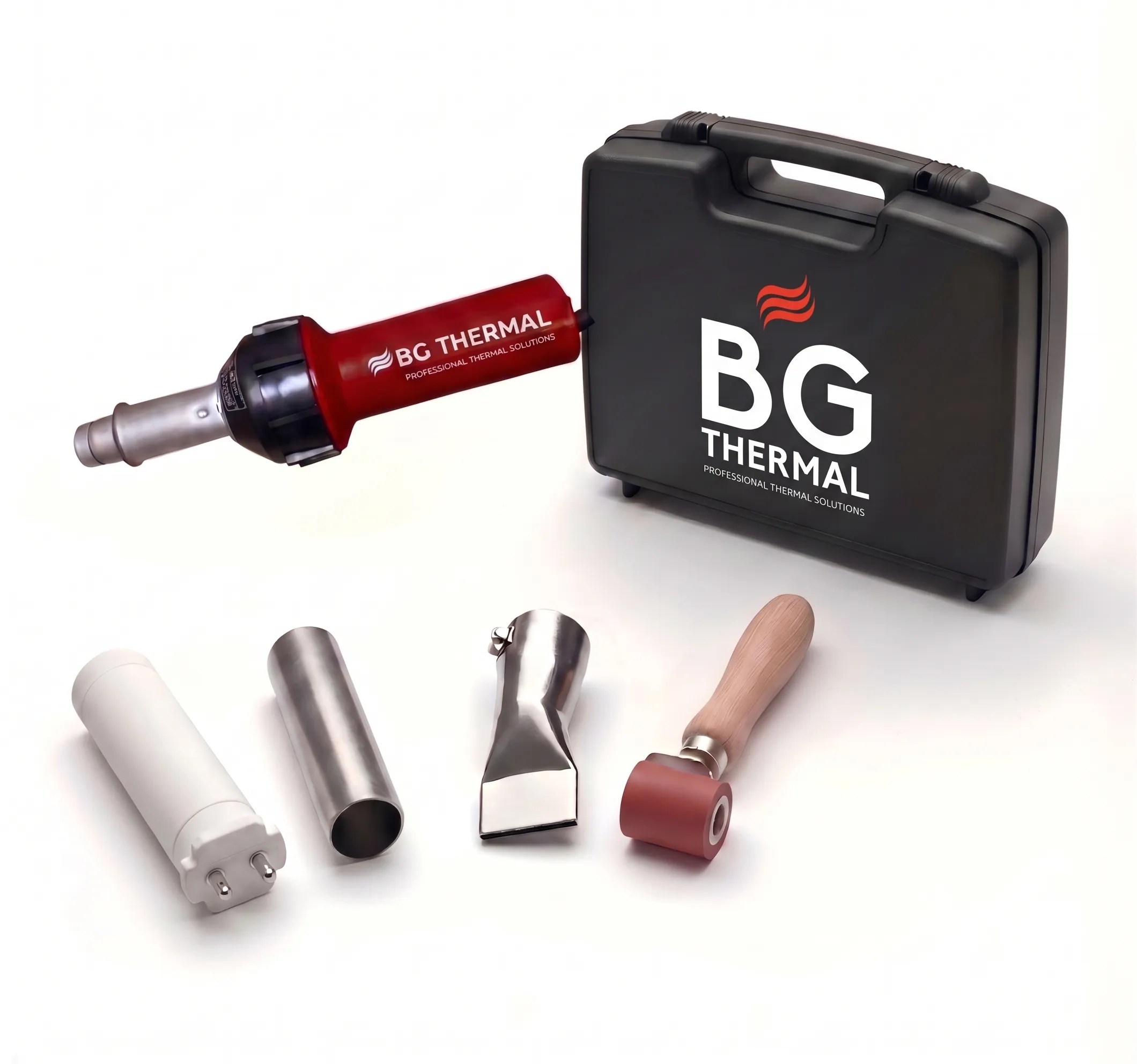

What is included in this overlap seam welding kit:
BG Thermal 1600W Straight-Barrel Hot Air Plastic Welder
40mm Wide Slot Flat Welding Nozzle
20mm Wide Slot Flat Welding Nozzle
40mm Silicone Pressure Roller
Spare High-Temp Ceramic Heating Element
Mica Insulation Protection Tube
User Manual & Safety Guide
The BG Thermal 1600W Hot Air Plastic Overlap Welding Kit is purpose-built for specialized overlap seam sealing applications, including landfill geomembrane liners, roofing membranes, industrial tarpaulins, and banner jointing. Built around an industrial-grade drive motor rated for 800–1000 continuous working hours, it delivers stable airflow and constant thermal output required for rigorous multi-shift jobs.
Key Features of overlap seam welding kt:
Industrial Continuous Duty: Premium internal drive and motor architecture rated for 800–1000 hours of reliable field service.
Stepless Thermal Tuning: Intuitive analog control dial allows fine-tuning temperature output between 20°C and 700°C.
Ergonomic Straight-Barrel Design: Balanced linear housing allows fatigue-free handling and even pressure distribution during long-pass seam welding.
Thermal Core Protection: Optimized internal cooling channels shield the ceramic heating element from thermal overload.
Technical Specifications for the BG Thermal 1600W overlap seam welding kit：
| Parameter | Specification |
| Rated Voltage | 110V / 230V AC (50/60Hz) |
| Power Output | 1600W |
| Temperature Range | 20°C – 700°C (Stepless Adjustable) |
| Air Volume | Max 240 L/min |
| Heating Core | High-Temperature Ceramic Core |
| Motor Lifespan | 800 – 1000 Hours (Continuous Duty) |
| Insulation Class | Double Insulated |
Applications:
Geomembrane liner & landfill overlap seam welding
Roofing membrane & waterproofing sheet jointing
Industrial tarpaulin, truck cover, and PVC banner welding
Thermoplastic sheet & containment liner overlap sealing
