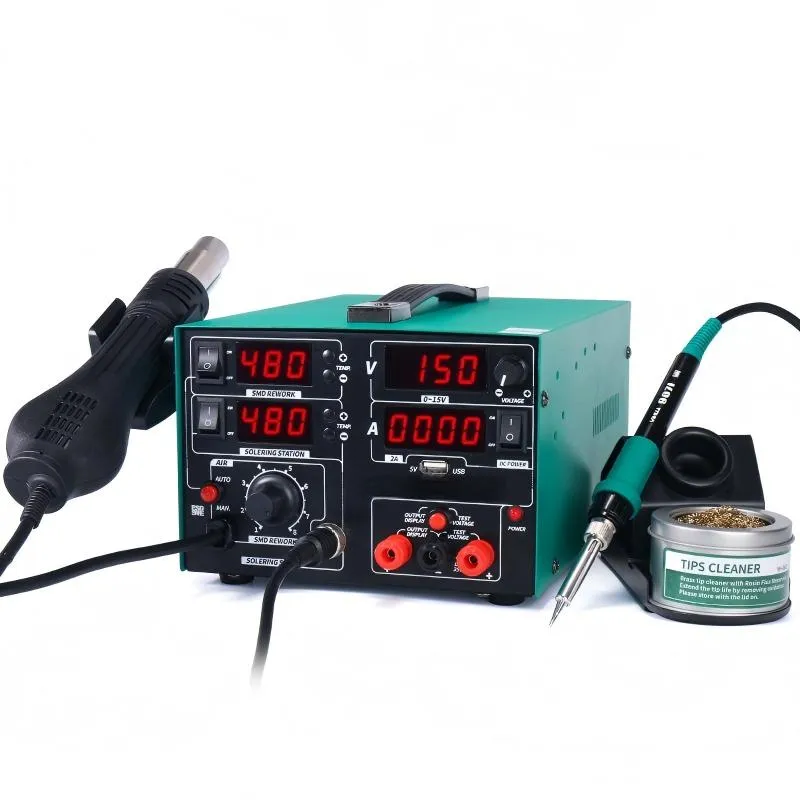

BG Thermal 3-in-1 Hot Air Rework Station with Soldering Iron & 15V DC Power Supply
Professional 3-in-1 benchtop rework system designed for precision electronics repair, PCB maintenance, and laboratory diagnostics. Powered by an intelligent PID microprocessor, this compact workstation integrates a hot air gun, 60W soldering iron, and 0–15V 2A DC power supply.
HIGHLIGHTS
3-in-1 Integrated Benchtop Design: Combines desoldering, precision iron soldering, and circuit testing in one space-saving chassis.
Microprocessor PID Control: Rapid milliseconds-level heat compensation ensures precise temperature stability and prevents thermal damage to sensitive ICs.
Soft Brushless Airflow System: Long-life brushless motor fan delivers uniform, quiet airflow up to 120L/min with auto-cooling standby mode.
4-Digit Quad LED Displays: Real-time dual temperature tracking alongside active voltage and current output monitoring.
Integrated 5V USB Output: Built-in USB port for direct powering, testing, and charging during repair workflows.

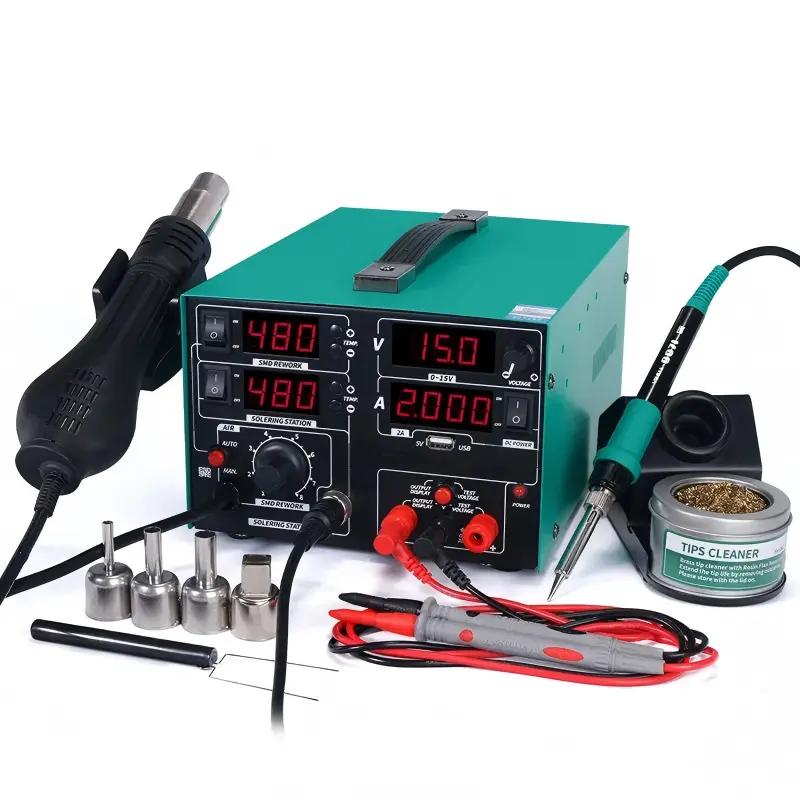

What is included in 3 in 1 rework station kit:

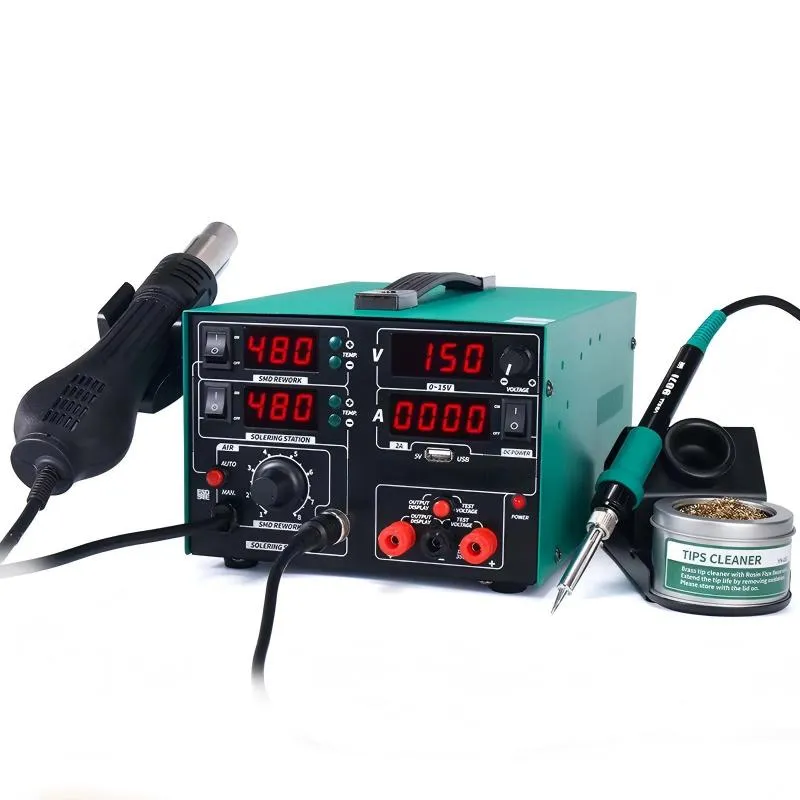

BG Thermal 3-in-1 Main Console Unit

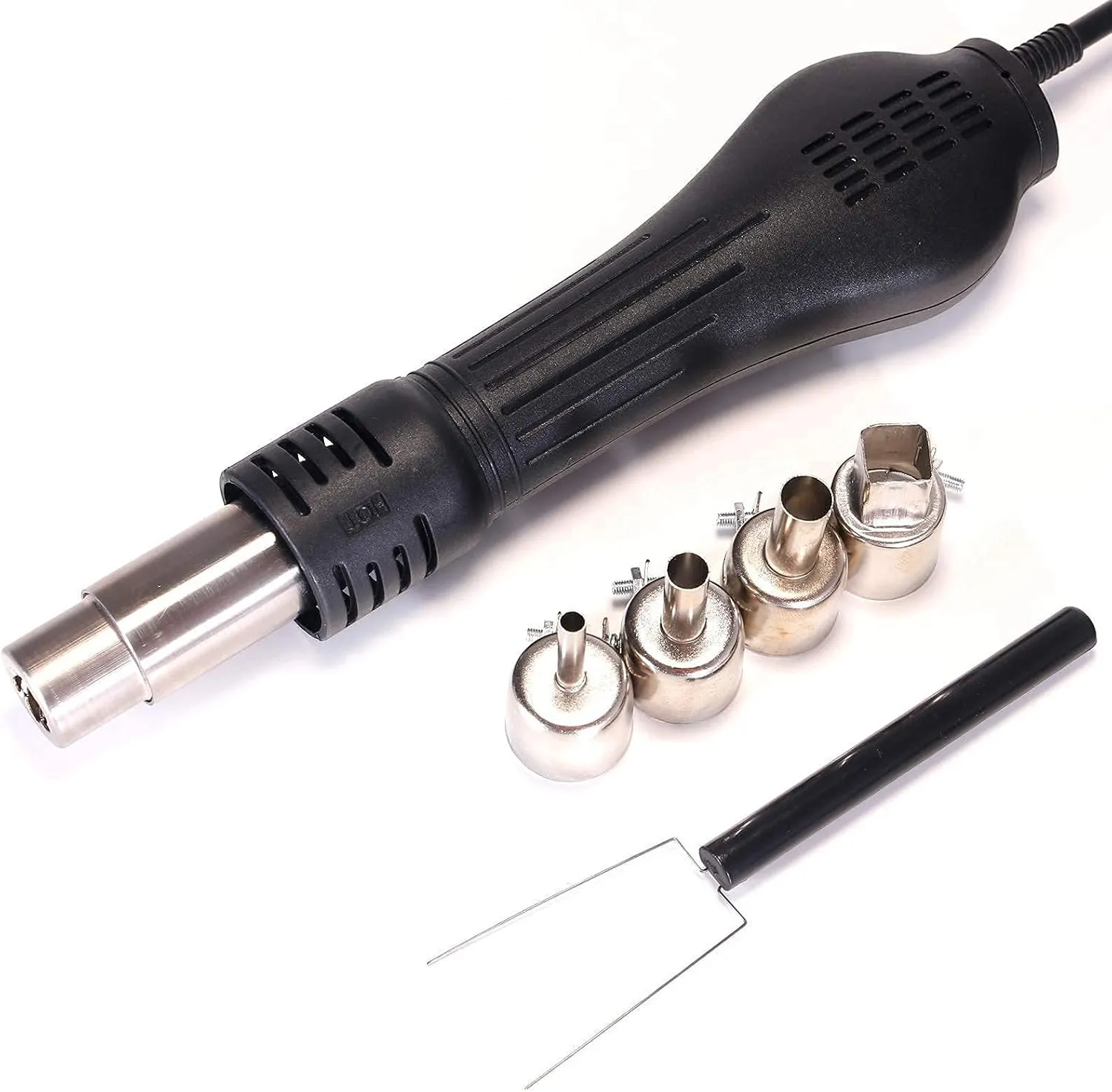

Temperature-Controlled Hot Air Gun Handle
60W Anti-Static Soldering Iron Handle
4 x Quick-Change Stainless Steel Air Nozzles
Heavy-Duty Soldering Iron Holder with Brass Tip Cleaner
Red/Black DC Power Testing Probe Leads
IC Extractor Tool & User Manual
The BG Thermal 3-in-1 hot air rework station is a purpose-built commercial tool engineered for electronics service centers, engineering laboratories, and industrial assembly lines. Delivering fast thermal response and exact closed-loop temperature management, this versatile benchtop workstation ensures reliable results across delicate SMD, BGA, SOIC, and QFP component servicing.
Key Features of 3-in-1 hot air rework station:
Continuous Duty Operation: Industrial-grade heating cores and durable brushless motor fan rated for heavy-duty daily workshop repair tasks.
Stepless Voltage & Airflow Dial: Precise manual adjustment for airflow velocity and variable 0–15V DC power output with short-circuit auto-protection.
Auto Standby & Safety Sensor: Magnetic induction handle triggers immediate heating upon pickup and automatic cooling standby when docked.
Dual Voltmeter Functionality: Supports external DC voltage measurement up to 35V for rapid board diagnostics.
Manufactured in accordance with heavy-duty thermal tool performance requirements and compliant with CE Safety Standards.
Technical Specifications of 3-in-1 hot air rework station:
| Parameter | Specification |
| Rated Output Power | 800W Total Output |
| Input Voltage | 110V / 220V AC (50/60Hz) |
| Hot Air Temp Range | 100°C – 480°C (Digital PID Control) |
| Hot Air Airflow Volume | Max 120 L/min (Brushless Motor) |
| Soldering Iron Temp Range | 200°C – 480°C |
| DC Power Supply Output | 0 – 15V DC / 0 – 2A |
| USB Power Output | 5V DC / 2A |
| Display Type | 4-Digit Red LED Displays |
Applications:
Cell phone, tablet, and commercial laptop PCB logic board rework
Industrial electronic component desoldering (BGA, SOIC, CHIP, QFP)
Educational hardware prototyping, testing, and laboratory engineering
Heat-shrink tubing, plastic melting, and small component drying
