1600W Commercial Vinyl Flooring Hot Air Welding Kit | BG Thermal
Professional-grade 1600W hot air vinyl flooring welding kit designed for continuous seam sealing on commercial PVC, linoleum, and vinyl sheet floors. Powered by a high-torque motor rated for an 800–1000 hour service lifespan, it features stepless temperature control from 20°C to 700°C for seamless job-site reliability.
HIGHLIGHTS
Commercial Floor Seaming: Complete vinyl flooring welding kit supplied with speed welding nozzles, tracking nozzle, and tubular adapter.
800–1000 Hour Lifespan: Heavy-duty industrial motor engineered to strict continuous-use specifications for multi-shift contracting work.
Stepless Heat Adjustment: Precision analog thermal control from 20°C to 700°C to accommodate varying PVC and thermoplastic vinyl floor formulations.
Thermal Core Protection: Integrated cooling airflow channels prevent heating element burnout during extended operation.
Ergonomic Straight Barrel: Lightweight, balanced housing ensures fatigue-free handling along long floor seams.

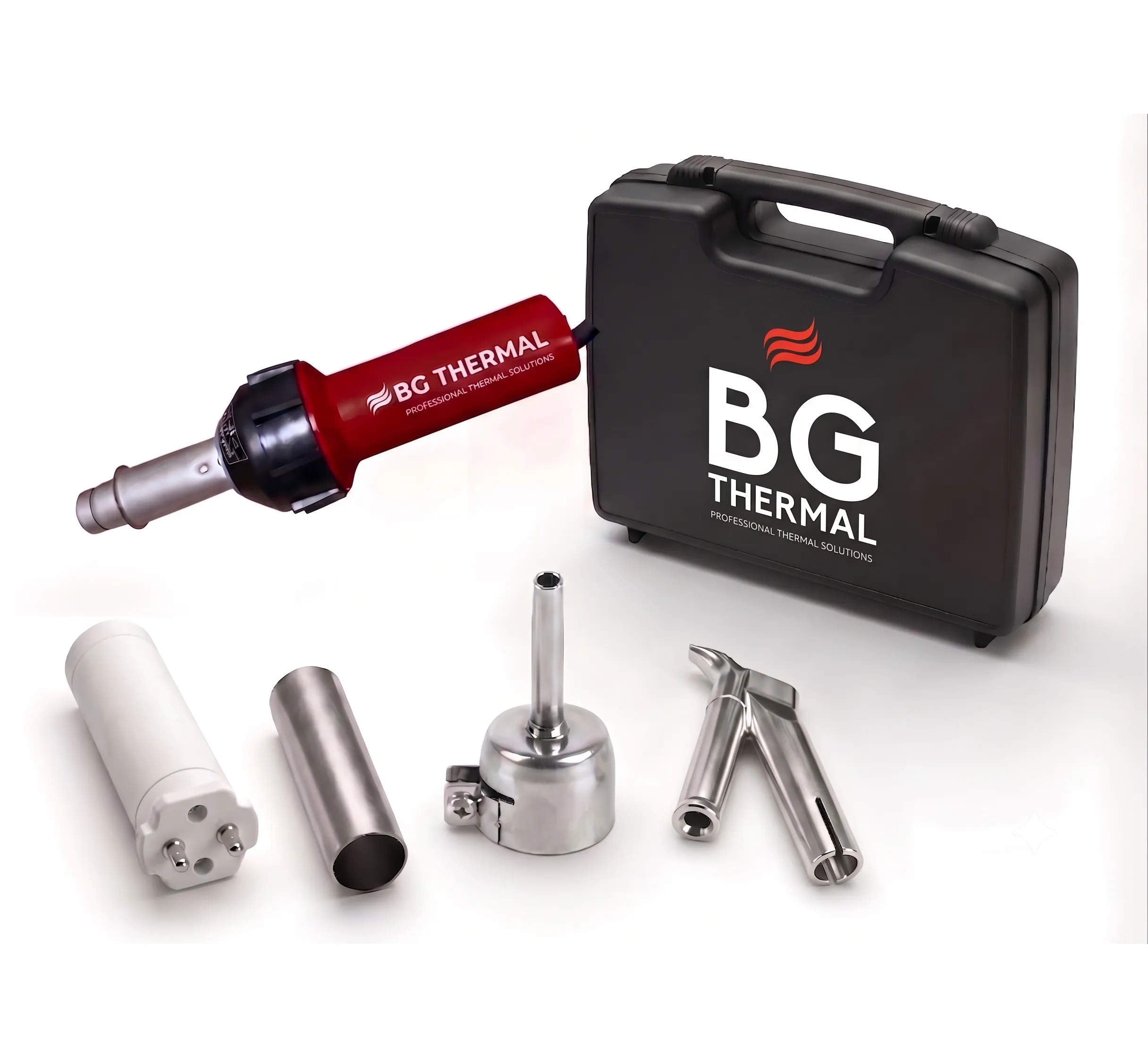

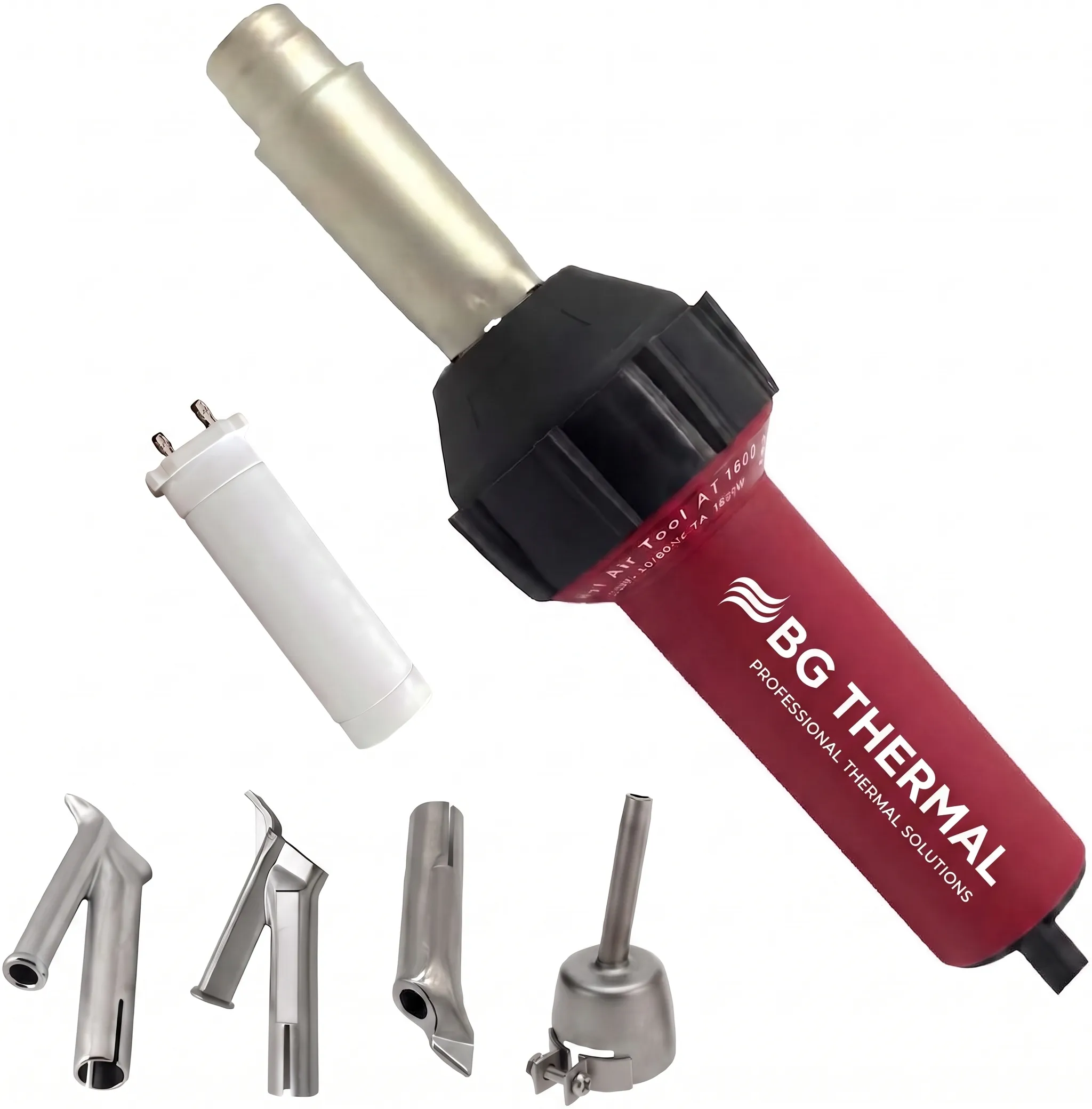

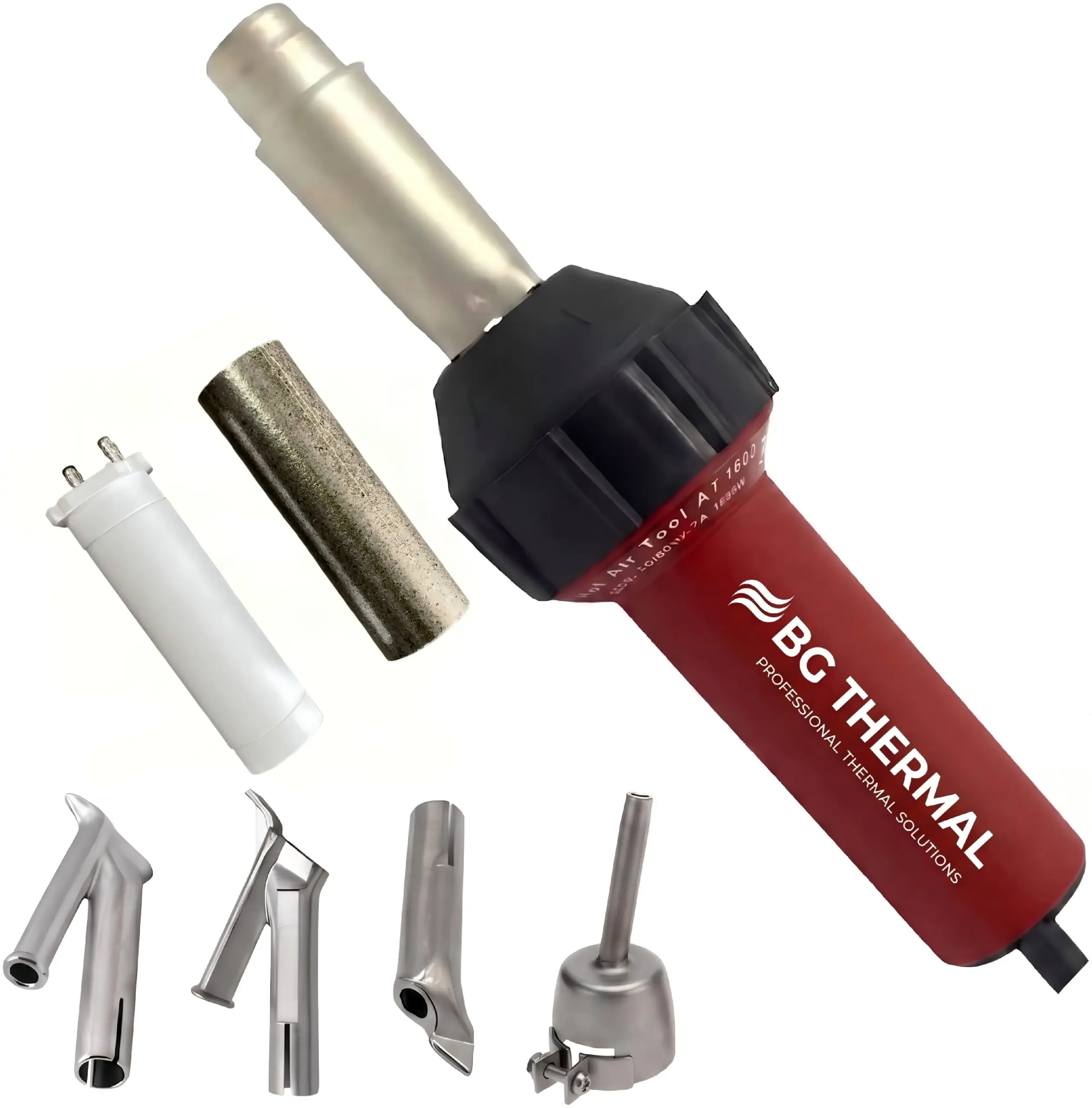

What is included in this vinyl flooring welding kit:
BG Thermal 1600W Straight-Barrel Hot Air Plastic Welder
5mm Standard Tubular Nozzle
5mm Round Speed Welding Nozzle
4mm Triangular Speed Welding Nozzle
Tacking / Tacking Nozzle
Spare High-Temp Ceramic Heating Element
Mica Insulation Protection Tube
- User Manual & Safety Guide
The BG Thermal 1600W Commercial Vinyl Flooring Hot Air Welding Kit is purpose-built for heavy-duty plastic floor seam sealing in hospital, school, and commercial environments. Driven by a high-torque motor rated for an 800–1000 hour continuous service life, this vinyl flooring welding kit provides stable airflow and consistent thermal output for precision seam grooving and filling.
Key Features of vinyl flooring welding kit:
Continuous Duty Motor: Industrial-grade motor built for an 800–1000 hour lifespan during continuous commercial installations.
Stepless Temperature Dial: Smooth thermal control allows rapid heat tuning between 20°C and 700°C.
Complete Speed Welding Setup: Specialized speed nozzles ensure rapid thermal fusion along long floor joints without scorching adjacent materials.
Overheat Protection: Designed with thermal protection channels that shield the internal ceramic core from thermal overload.
Manufactured in accordance with heavy-duty thermal tool performance requirements and compliant with CE Safety Standards.
Technical Specifications of vinyl flooring welding kit:
| Parameter | Specification |
| Rated Voltage | 110V / 230V AC (50/60Hz) |
| Power Output | 1600W |
| Temperature Range | 20°C – 700°C (Stepless Adjustable) |
| Air Volume | Max 240 L/min |
| Heating Element | High-Temperature Ceramic Core |
| Motor Lifespan | 800 – 1000 Hours (Continuous Duty) |
| Insulation Class | Double Insulated |
Applications:
Commercial vinyl flooring & PVC sheet seam welding
Hospital & cleanroom resilient flooring thermal jointing
Linoleum & rubber flooring groove filling
Thermoplastic tank & plastic sheet detail fabrication
